STABAKE - a professional food processing equipment supplier and manufacturer since 2002.

High Efficiency Automatic Tortilla Making Machine 1
High Efficiency Automatic Tortilla Making Machine 2
High Efficiency Automatic Tortilla Making Machine 3
High Efficiency Automatic Tortilla Making Machine 4
High Efficiency Automatic Tortilla Making Machine 1
High Efficiency Automatic Tortilla Making Machine 2
High Efficiency Automatic Tortilla Making Machine 3
High Efficiency Automatic Tortilla Making Machine 4

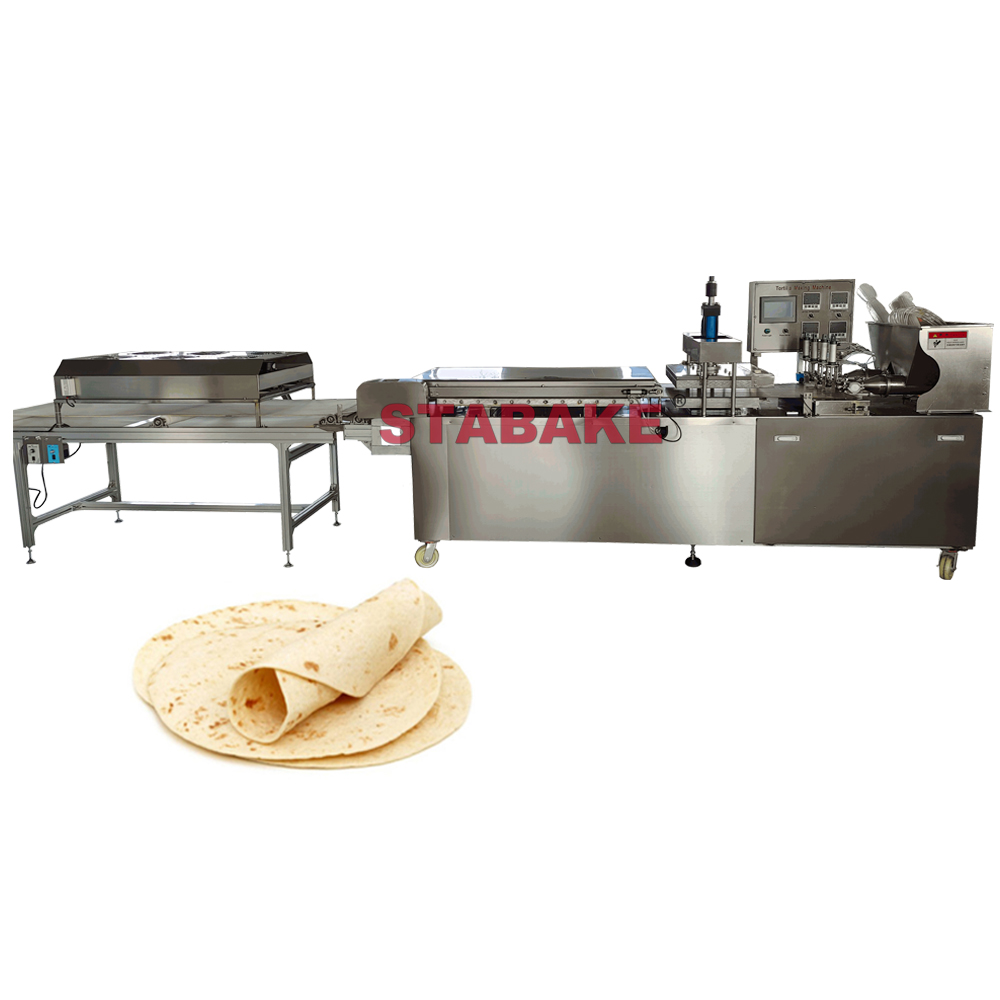

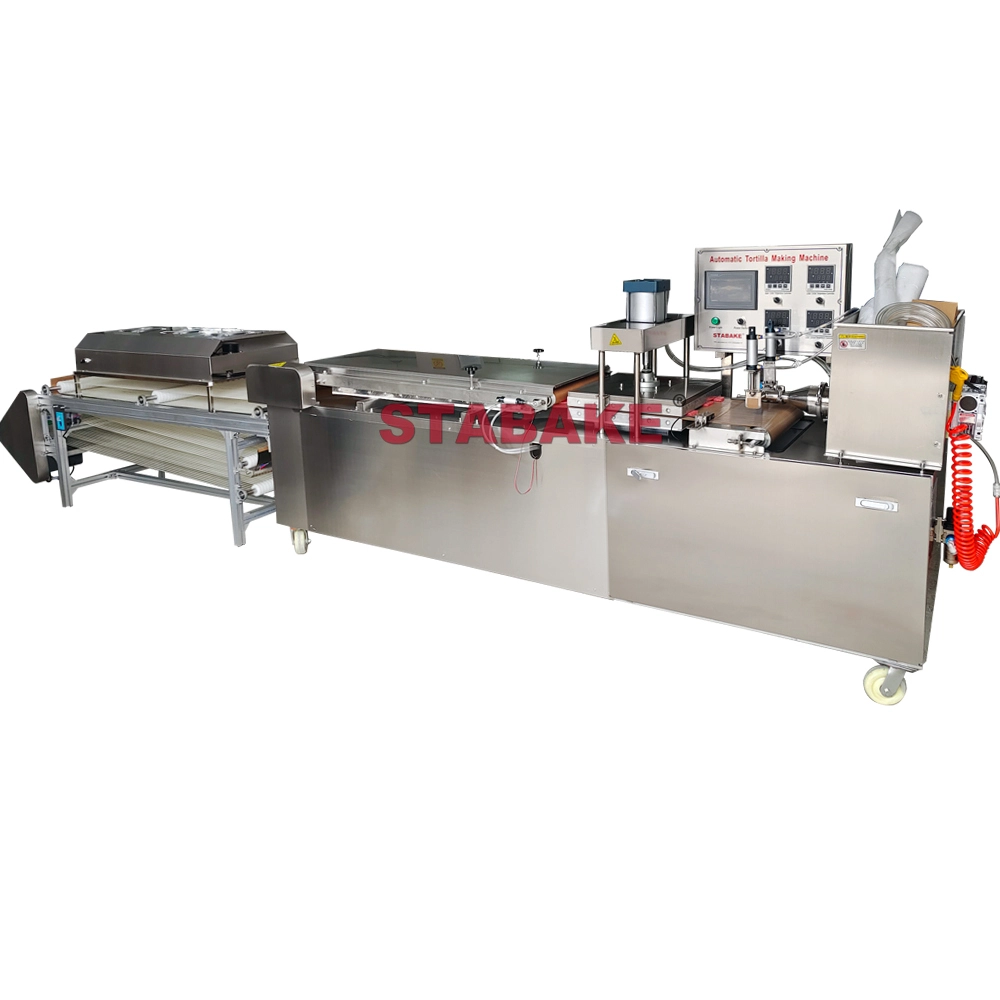

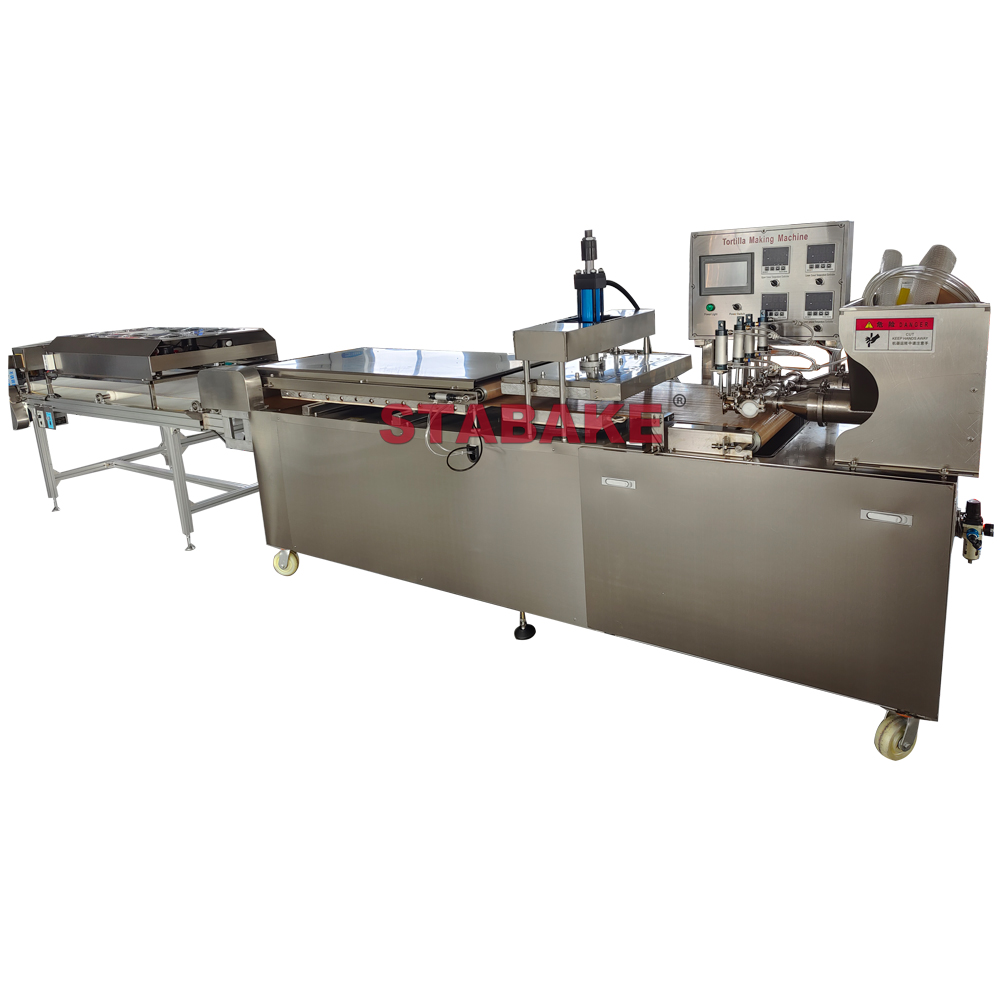

High Efficiency Automatic Tortilla Making Machine

Tortilla size and weight adjustable; Meet different requirement of dough recipes. The tortilla machine Used for making tortillas of flour tortilla, corn tortilla, roti, chapati, lavas, plain soft taco, burritos tortilla, chicken burritos wraps,duck pancake, spring rolls bread, khakhra crisp flat bread, pani puri, specialty bread, etc.

    oops...!

    no product data.

    Go to homepage

    Food Produced By This Machine

    1 (7)
    Tortilla wraps
    2 (10)
    Burritos wraps
    3 (6)
    Duck pancake
    4 (4)
    Khakhra cris bread
    5 (4)
    Chapati
    6 (7)
    Plain soft taco
    7 (3)
    Flour tortilla
    8 (3)
    Spring roll wraps
    9 (5)
    Spring bread
    10 (3)
    Tortilla
    11 (5)
    Pani puri
    12
    Flat bread

    Technical Parameter

    Model

    FBA-450/450S

    FBA-550

    FBA-650

    FBA-750

    Heating Press Plate Size

    450*450MM

    550*550MM

    650*450MM

    750*450MM

    Heating Temperature

    0-200℃

    0-200℃

    0-200℃

    0-200℃

    Dough Extruder

    Single Port

    Double Port

    Double Ports

    Double Ports

    Cooling Layer

    Triple Layers
    Double Layers

    Triple Layers

    Triple Layers

    Triple Layers

    Dimension

    5100*800*1400 MM
    3500*800*1400 MM

    5200*900*1400 MM

    5200*1000*1400 MM

    5200*1100*1400 MM

    Weight

    450 KG

    480 KG

    500 KG

    520 KG

    Tortilla Size

    100-350 MM

    100-400 MM

    100-350 MM

    100-350 MM

    Tortilla Thickness

    0.5 - 2 MM

    0.5 - 2 MM

    0.5 - 2 MM

    0.5 - 2 MM

    Baking Temperature

    0-300℃

    0-300℃

    0-300℃

    0-300℃

    Baking Time

    0-99 seconds

    0-99 seconds

    0-99 seconds

    0-99 seconds

    Voltage

    380 V

    380 V

    380 V

    380 V

    Power

    22 KW

    26 KW

    26 KW

    30 KW

    Application

    The tortilla machine Used for making tortillas of flour tortilla, corn tortilla, roti, chapati, lavas, plain soft taco, burritos tortilla, chicken burritos wraps,duck pancake, spring rolls bread, khakhra crisp flat bread, pani puri, specialty bread, etc

    Features

    ● Automatic working from dough directly to tortilla product, and tortilla package available.

    PLC control and touch screen memory function for bread recipe and parameter

    Tortilla size and weight adjustable, bakingtemperature and time easy setting.

    Customized to equipped with single nozzle, double nozzles, triple nozzles and four nozzles based on bread size.

    Hydraulic cylinder or Pneumatic Cylinder pressure as option.

    Simple operation, one-person operation, saving time and effort.

    Instruction

    1.Feed the dough at one end and continuously discharges the bread at the other end. Automatic working without manual help, the baking temperature is constant, and the fire color is even.

    2.Adopt mechatronics numerical control adjustment system, with low noise, high efficiency, low energy consumption, simple operation, one-person operation, saving time and effort.

    3.Whole machine structure is exquisite, the dough feeding system working smooth, no defects would occur, also machine is easy to disassemble and clean.

    4.Bread diameter (10-400mm) thick (0.5-2mm), fire color and speed can be adjusted freely.

    5.Imitation hand-made bread, pure natural green food, without any other additives. Mainly used for making Imitation of hand-made bread, used to make tortilla, duck pancakes, Mexican burritos, spring roll wrappers, multigrain pancakes, vegetable burritos, etc., truly realizing the multi-purpose of one machine

    Process of production line and details

    High Efficiency Automatic Tortilla Making Machine 17
    01
    Dough cutter machine
    High Efficiency Automatic Tortilla Making Machine 18
    02
    Tortilla pressing machine
    High Efficiency Automatic Tortilla Making Machine 19
    03
    Conveyor
    High Efficiency Automatic Tortilla Making Machine 20
    04
    Baking Oven
    6 (8)
    05
    Cooling system

    Machine details

    1 (8)

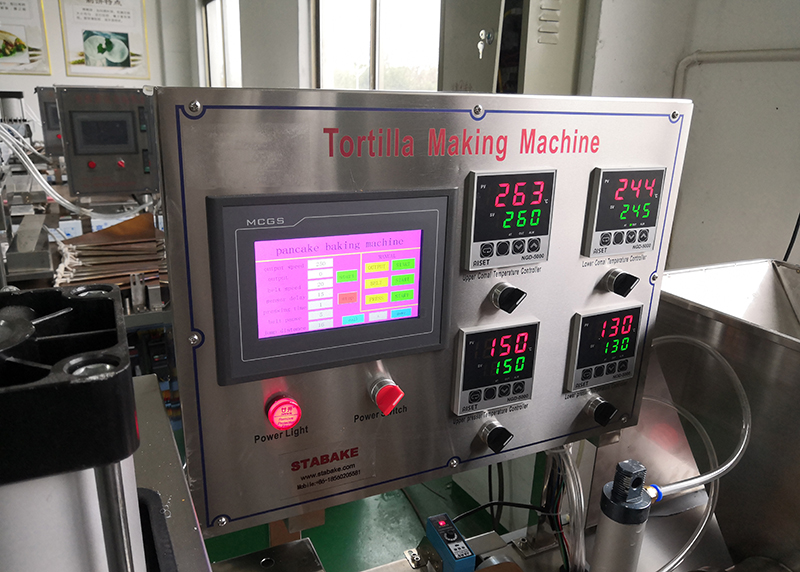

    PLC control system
    Temperature adjustable, Bread size adjustable, Recipe date storage function, Mechatronics numerical control system, Easy to operation
    2 (11)

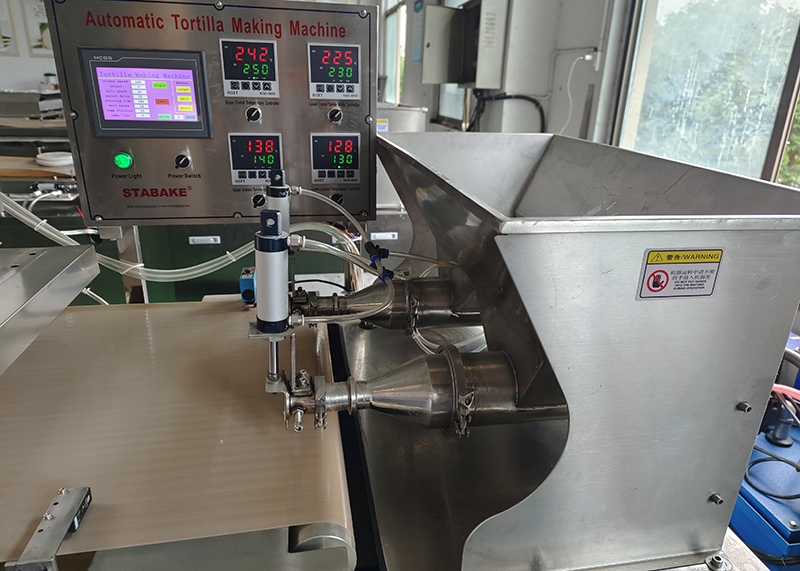

    Large Volume Dough Feeding Hopper
    Double SS304 Stainless steel extruder and bin, 15-25kg dough one time.
    3 (7)

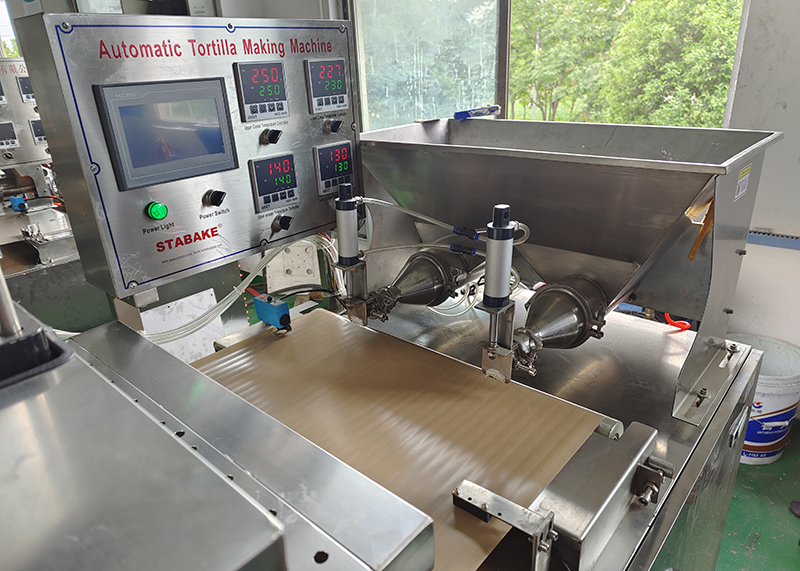

    High precision Dough cutting system
    High precision divided; Less error, Customized made cutting nozzle

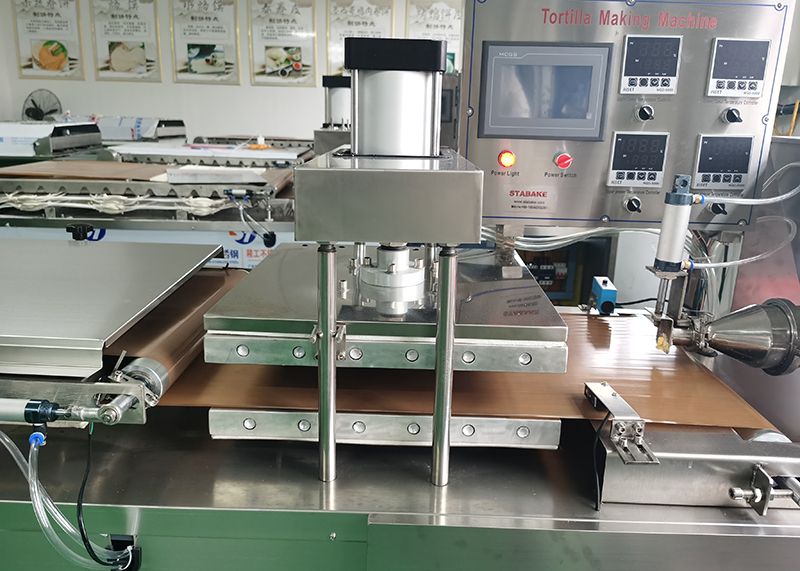

    4 (5)
    Hydraulic Hot pressing system
    Hydraulic pressure for well-formed, Durable electric heating element, Press time and temperature adjustable flexible, Durable electric heating elements
    5 (5)

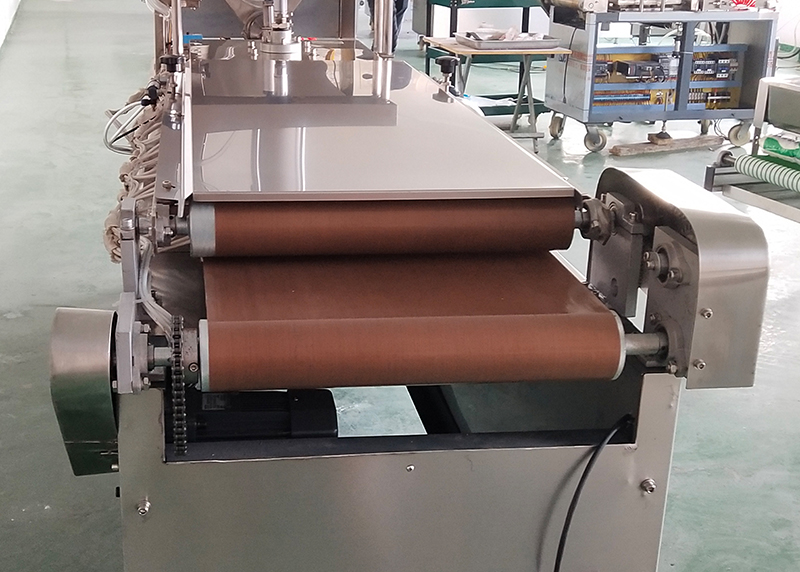

    Efficient Baking system
    Up and down layer temperature controlled separately, Durable electric heating elements, Safety and health high temperature conveyor belt, Uniform Baking temperature, Good preservation

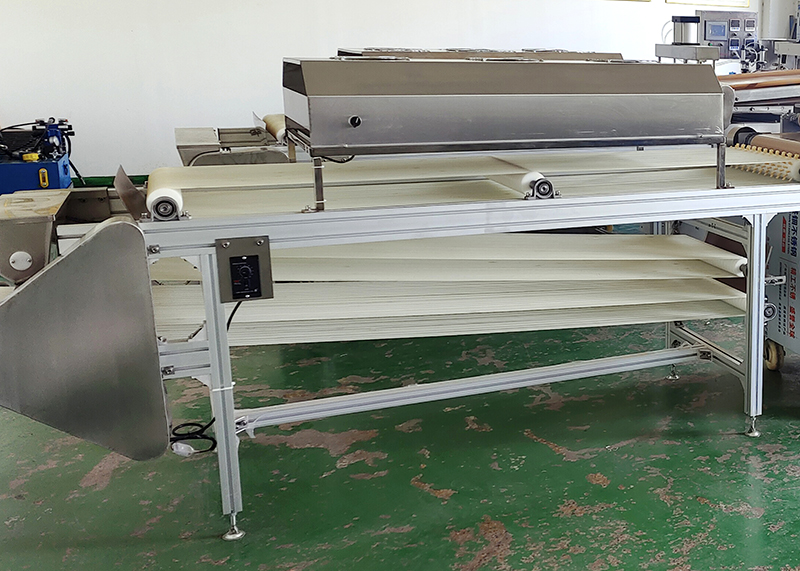

    6 (8)
    High efficient Cooling system
    Three layers cooling belt, Speed controller, Fan included good cooling effect, Simple mechanism

    After-sales service

    High Efficiency Automatic Tortilla Making Machine 28
    01
    Advice and Assistance for setting up new factory
    High Efficiency Automatic Tortilla Making Machine 29
    02
    Repair and maintenance if any problem occurred in warranty
    High Efficiency Automatic Tortilla Making Machine 30
    03
    Installation, commissioning and training
    High Efficiency Automatic Tortilla Making Machine 31
    04
    Spare parts and wear parts free or with big discount
    6 (8)
    05
    Technology knowledge and recipe technique share
    5 (5)
    06
    Try our best to support if any feedback of the machine
    4 (5)
    07
    Other cooperation service
