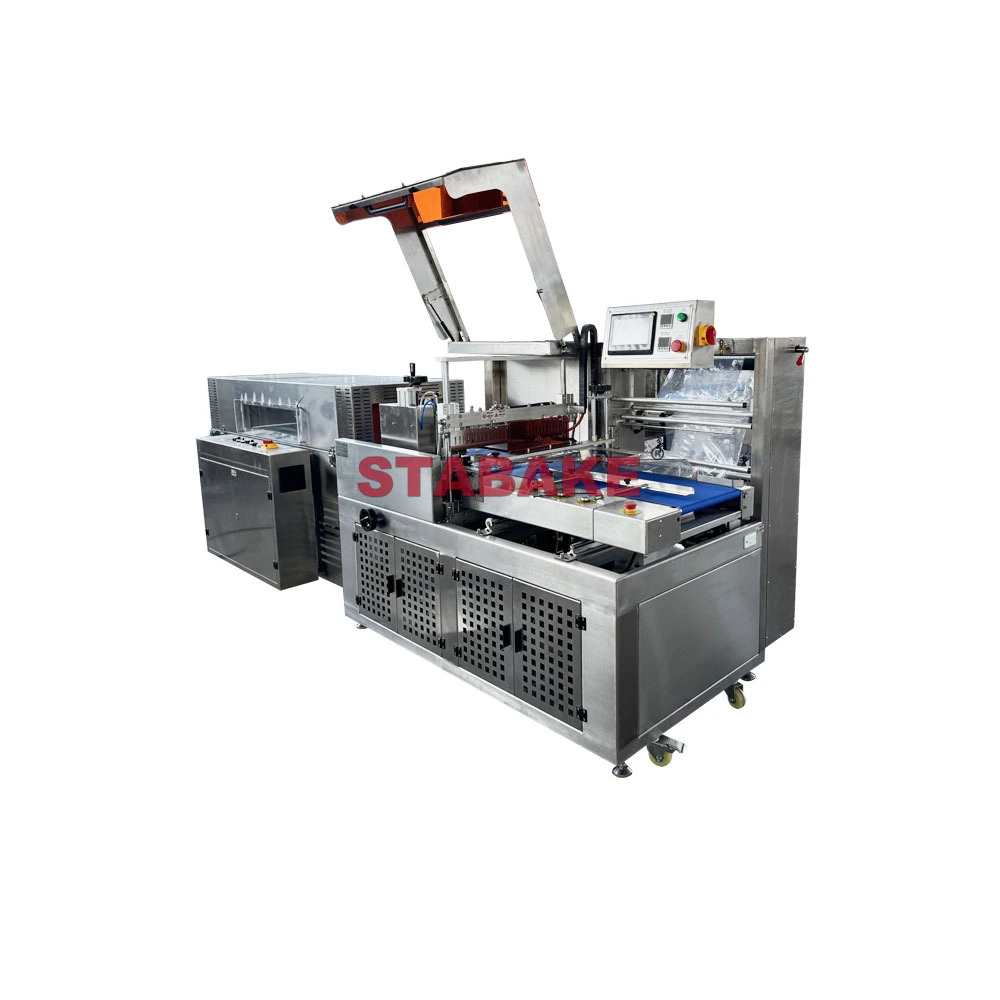

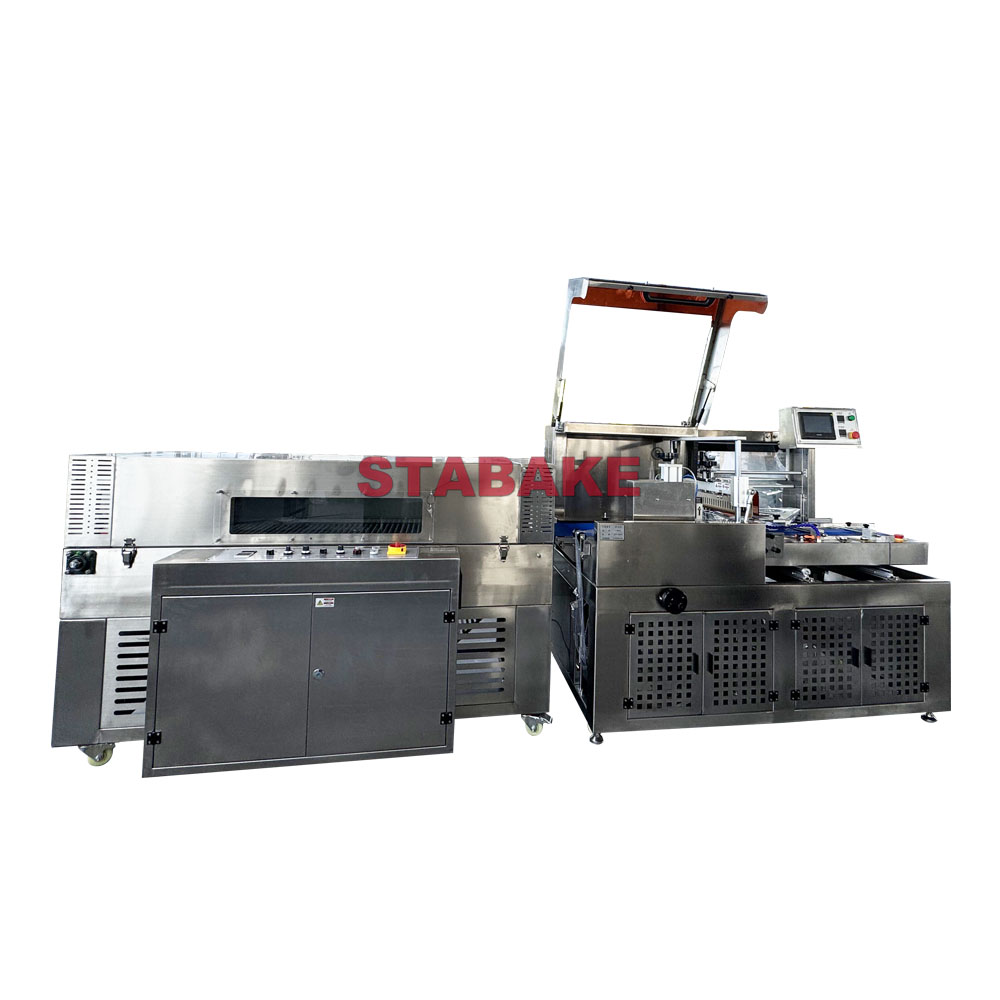

Horizontal Form Fill Seal Machine Manufacturer
Packaging Effect Display
Technical Parameter
|
Model |
VT-210XA |
VT-280XA |
VT-330XA |
VT-410XA |
VT-480XA |
|
Film Width |
Max: 440mm |
Max: 580mm |
Max: 680mm |
Max: 830mm |
Max: 980mm |
|
Bag Length |
100-900mm |
100-900mm |
100-900mm |
100-900mm |
100-900mm |
|
Bag Width |
50-210mm |
60-280mm |
80-330mm |
100-410mm |
150-480mm |
|
Product Length |
Max: 120mm |
Max: 180mm |
Max: 180mm |
Max: 220mm |
|
|
Film Roll Diameter |
Max: 380mm |
||||
|
Packaging Rate |
10-40bag/min |
10-40bag/min |
10-30bag/min |
10-30bag/min |
10-30bag/min |
|
Power |
220V 50/60HZ 3.0KW |
220V 50/60HZ 4.0KW |
220V 50/60HZ 4.0KW |
220V 50/60HZ 5.0KW |
220V 50/60HZ 5.0KW |
|
Dimension |
3900*860*1450mm |
4000*1000*1550mm |
4000*1100*1550mm |
4200*1250*1600mm |
4200*1400*1600mm |
|
Weight |
About: 650kg |
About: 700kg |
About: 1000kg |
About: 1150kg |
|
|
Film material |
BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/CPP ETC. |
||||
|
Remarks |
Optional air filling device/ Optional angle folding device |
||||
Features:
1. Compact machine structure with smaller footprint area.
2. Carbon steel or stainless steel machine frame with nice appearance.
3. Optimized component design realizing fast and stable packing speed.
4. Servo control system with higher accuracy and flexibility mechanical motion.
5. Different optional configurations and functions meeting different specific requirements.
6. High accuracy of color mark tracking function.
7. Easy to use HMI with memory function.
