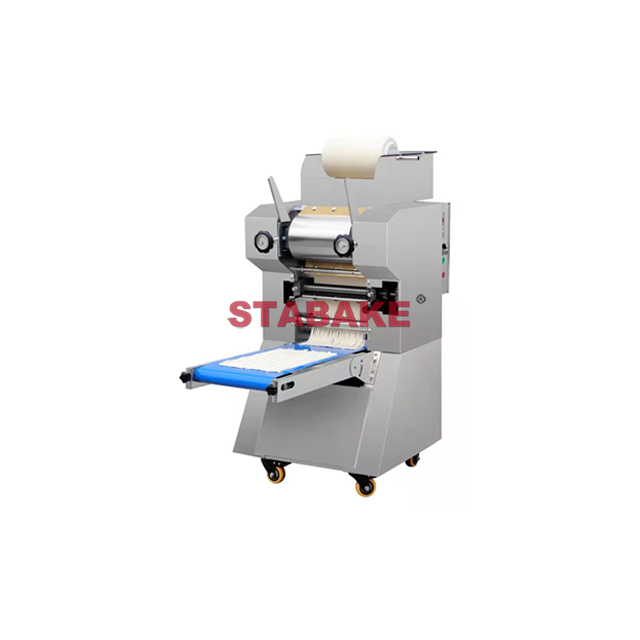

Noodle Making Machine

This is our new model automatic noodle making machine, it can be equipped with different noodle cutting blades, you can get different size noodles by changing blades. This machine can make noodles automatically and continuously automatic cut to different length. It is suitable for noodle processing plants, hotels, restaurants for noodle making.

Inquiry

Write a Review

Technical Parameter

Model	MT-260	MT-360
Voltage	110V/ 220V/380V	110V/ 220V/380V
Power	1.1KW	2.32KW
Capacity	50-70KG/H	80-100KG/H
Dough roller diameter	168MM	168MM
Dimension	58011801150MM	59014001090MM
Weight	280KG	320KG

Features

● Simple operate, to make noodle quickly.

● Dough sheet and noodles finish in one machine.

● Double adjusting hand wheels are added to easily adjust the speed.

● High quality stainless steel material, widen roller with 168mm,even press dough sheet.

● Small size and light weight, fast production speed.

Different noodle blades for choose.

Square cutter has 1.5/3/4/6/8/10mm

Round cutter has 1.5/2/3mm

Customized size contact us

Machine Details

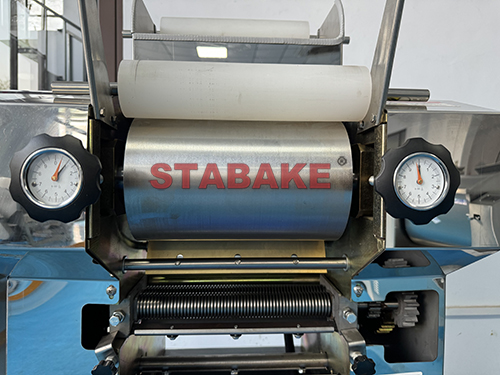

High precision cutting groove

Cutting noodles with precision and consistent thickness. Long service life as less friction

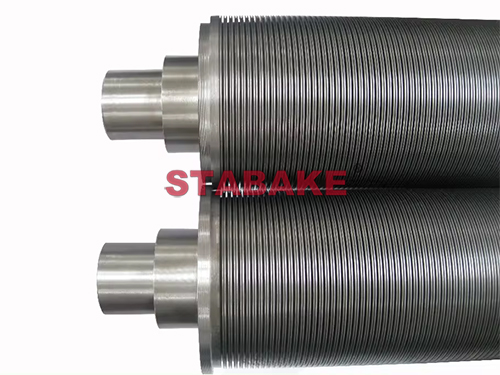

Smooth & Clean cutting groove side surface

Cutting smooth noodles without burrs or knots Cutting surface is free from dough debris Reducing the coking substances while frying Improving noodles appearance and texture

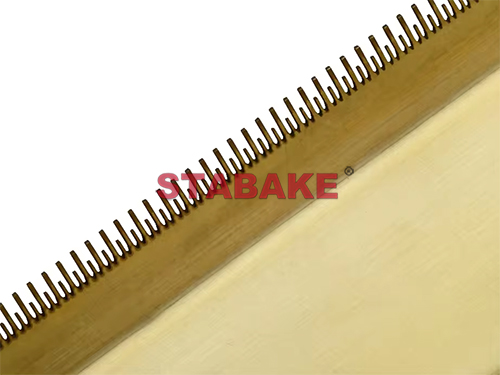

High precision scraper comb

Made by CNC wire-cut machine for perfect matching gaps between cutter grooves and comb teeth Made by CNC bending machine for precision and consistent bending angles, flat and straight comb teeth Made of bronze, stainless steel or materials specified by customer High wear resistance / Good elasticity / Long service life.

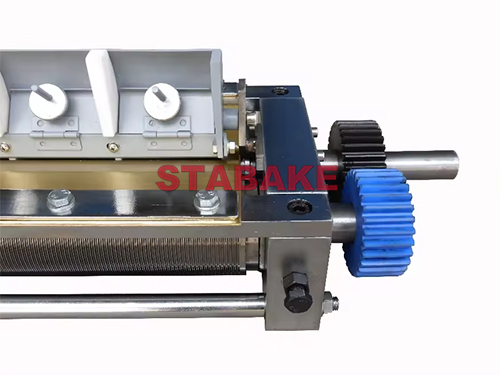

Optional gears

Carbon steel gears with heat treated to improve the surface hardness, wear resistance and extend the service life. Oily nylon gears suitable for low speed, low load, no lubrication, high cleanliness working conditions.
